GLEAM WALL WASHER
> Aluminium extrusion body
> 20μ anodized surface finishing
> 4mm tempered glass cover
> Narrow-Midium-Wide and asymmetric
beam options
Red-Green-Blue-Amber light colour options
> Option: Switchable or dimmable
> 1-10V, DALI, Touch-Dim, Casambi
> 198-240V AC
> PF 0,90
> -20˚C ... +40˚C
- DOWNLOADS
-
GLEAM WALL WASHER DATASHEET
TECHNICAL PARAMETERS
| Code | W | Luminous Flux (lm) |
Efficacy (lm/W) |
CRI | Color Temperature (K) |
Dimensions (mm) |
|---|---|---|---|---|---|---|
| 120GLM.76.03 | 76 | 6992 | >92 | >70 | 3000K - 6500K | 60x1214x180mm |
| 120GLMR.60.03 | 60 | - | - | - | Red - 633nm | 60x1214x180mm |
| 120GLMG.76.03 | 76 | - | - | - | Green - 520nm | 60x1214x180mm |
| 120GLMB.76.03 | 76 | - | - | - | Blue - 467nm | 60x1214x180mm |
| 120GLMA.60.03 | 60 | - | - | - | Amber-593nm | 60x1214x180mm |

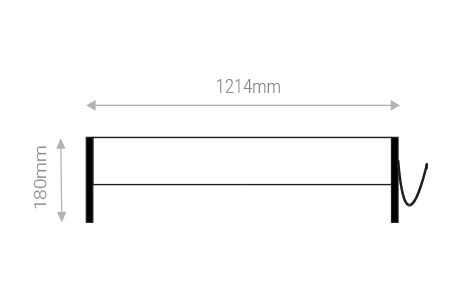

DIMENSIONS
LIGHT BEAM
