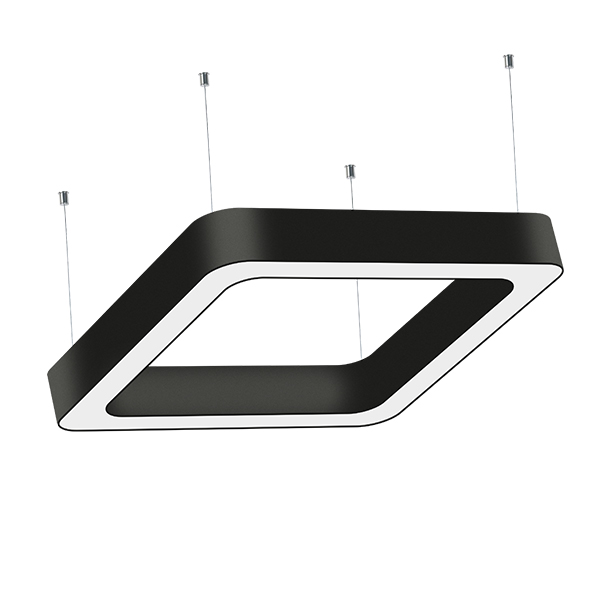

HOLT SUSPENDED
- White, grey, black color electrostatic powder coated aluminium extrusion housing
- SMD LED light source
- Lighting grade PMMA opal diffuser
- Microprismatic diffuser option for extra glare control
- Option: Switchable or dimmable
- Option: 1-10V, DALI, Touch-Dim, Casambi
- Option: 3 Hours emergency kit
- L80B10 - 60.000 hours
- SDCM ≤ 3 (3-step Mac Adam)
- 220-240V AC
- -20˚C ... +35˚C
- Standard suspension kit lenght: 1500mm
- DOWNLOADS
-
HOLT SUSPENDED - Datasheet
TECHNICAL PARAMETERS
| Code | W | Luminous Flux (lm) |
Efficacy (lm/W) |
CRI | Color Temperature (K) |
Dimensions (mm) |
|---|---|---|---|---|---|---|
| 3030HLP.24.02 | 24 | 2640 | >80 | 3000K - 6500K | W:300 x L:300 x H:80 | |
| 4040HLP.35.02 | 35 | 3850 | >110 | >80 | 3000K - 6500K | W:400 x L:400 x H:80 |
| 6060HLP.52.02 | 52 | 5720 | >110 | >80 | 3000K - 6500K | W:600 x L:600 x H:80 |
| 9090HLP.78.02 | 78 | 8580 | >110 | >80 | 3000K - 6500K | W:900 x L:900 x H:80 |
| 120120HLP.105.02 | 105 | 11550 | >110 | >80 | 3000K - 6500K | W:1200 x L:1200 x H:80 |
| 150150HLP.130.02 | 130 | 14430 | >110 | >80 | 3000K - 6500K | W:1500 x L:1500 x H:80 |

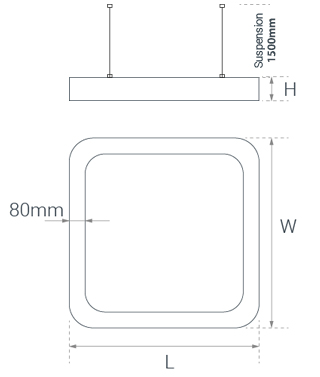

DIMENSIONS

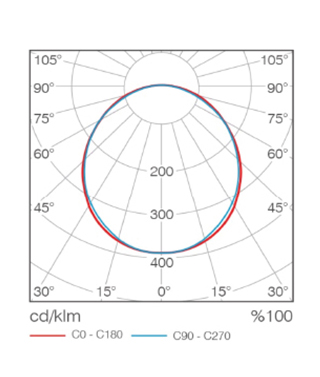

LIGHT BEAM
