LINA 105 RECESSED
> Aluminium extrusion housing
> White, grey, black antimicrobial electrostatic powder coated
> Opal PC diffuser
> Option: Prismatic-Microprismatic diffuser
> Option: Switchable or dimmable
> 1-10V, DALI, Touch-Dim, Casambi
> 220-240V AC
> -20˚C ... +35˚C
> Continuous mounting options end to end
- DOWNLOADS
-
LINA 105 RECESSED DATASHEET
TECHNICAL PARAMETERS
| Code | W | Luminous Flux (lm) |
Efficacy (lm/W) |
CRI | Color Temperature (K) |
Dimensions (mm) |
|---|---|---|---|---|---|---|
| 114LN105.44.01 | 44 | 4800 | >109 | >80 | 3000K - 6500K | 1140mm |
| 170LN105.66.01 | 66 | 7200 | >109 | >80 | 3000K - 6500K | 1700mm |
| 200LN105.80.01 | 80 | 8400 | >105 | >80 | 3000K - 6500K | 2000mm |
| 3100LN105.124.01 | 124 | 13200 | >106 | >80 | 3000K - 6500K | 3100mm |
DIMENSIONS

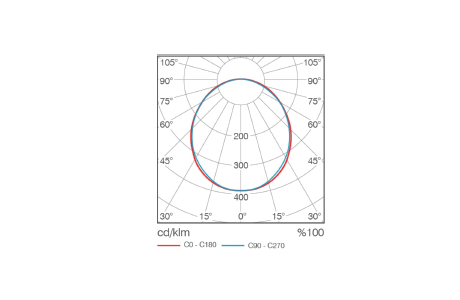

LIGHT BEAM
