LUNEM 5
Models : Standard, Self-Tested and DALI versions
Mains Voltage : 230 Volt AC/DC, 24 Volt AC/DC
Operating Mode : Maintained or Non-maintained mode
Light Source : 8 Mid power LED PCB, 6500K, CRI>80
Battery : High temperature Ni-Cd or Ni-MH battery block
Emergency Duration : Selectable 1 or 3 hours
Insulation Class : Class II (no earth wiring required)
Protection Class : Standard IP50, IP65 with gasket
Temperature : ta 5-40°C
Enclosure : Thermoplastic housing
Color : White (black, gold, chrome is available)
Viewing Distance : 24 meter
- DOWNLOADS
TECHNICAL PARAMETERS
| Code | W | Luminous Flux (lm) |
Efficacy (lm/W) |
CRI | Color Temperature (K) |
Dimensions (mm) |
|---|---|---|---|---|---|---|
| 35LNM5.08.02 | 8 | 700 | 88 | 80 | 3000-6500 | 355x144x79 |
DIMENSIONS

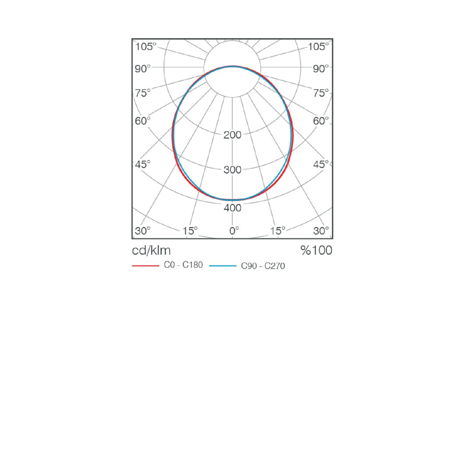

LIGHT BEAM
