ROON H8 SURFACE
> Aluminium housing
> Antimicrobial powder coated
> Opal PMMA diffuser
> Option: Switchable or dimmable
> Option: 1-10V, DALI, Touch-Dim, Casambi
> SDCM ≤ 3 (3-step Mac Adam)
> 220-240V AC
> -20˚C ... +35˚C
- DOWNLOADS
-
ROON H8 SURFACE DATASHEET
-
ROON H8 SURFACE LDT
TECHNICAL PARAMETERS
| Code | W | Luminous Flux (lm) |
Efficacy (lm/W) |
CRI | Color Temperature (K) |
Dimensions (mm) |
|---|---|---|---|---|---|---|
| 40RNS8.18.02 | 18 | 2160 | >120 | >80 | 3000K - 6500K | 400X82 |
| 60RNS8.55.02 | 55 | 6600 | >120 | >80 | 3000K - 6500K | 600X82 |
| 90RNS8.90.02 | 90 | 10800 | >120 | >80 | 3000K - 6500K | 900X82 |
| 120RNS8.125.02 | 125 | 15000 | >120 | >80 | 3000K - 6500K | 1200X82 |
DIMENSIONS

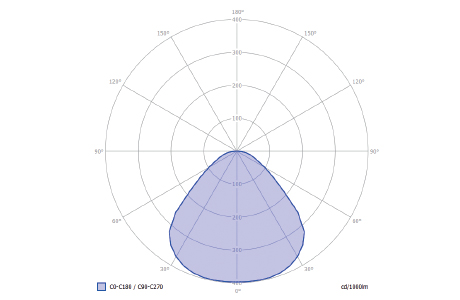

LIGHT BEAM
