SQUIRCLE SURFACE
- Aluminium housing
- Antimicrobial powder coated
- Opal PMMA diffuser
- Option: Switchable or dimmable
- Option: 1-10V, DALI, Touch-Dim, Casambi
- SDCM ≤ 3 (3-step Mac Adam)
- 220-240V AC
- -20˚C ... +35˚C
- DOWNLOADS
-
SQUIRCLE-Datasheet
TECHNICAL PARAMETERS
| Code | W | Luminous Flux (lm) |
Efficacy (lm/W) |
CRI | Color Temperature (K) |
Dimensions (mm) |
|---|---|---|---|---|---|---|
| 30SQU8.25.02 | 25 | 3004 | >120 | >80 | 3000K - 6500K | W:300 x L:300 x H:82mm |
| 60SQU8.38.02 | 38 | 4562 | >120 | >80 | 3000K - 6500K | W:600 x L:600 x H:82mm |
| 90SQU8.55.02 | 55 | 6610 | >120 | >80 | 3000K - 6500K | W:900 x L:900 x H:82mm |
DIMENSIONS

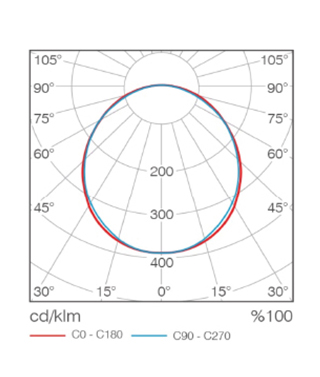

LIGHT BEAM
