CONIC
- Electrostatic powder coated aluminium housing
- Aluminium die cast heat sink
- Tempered safety glass
- Fabricated steel grid cage cover
- SMD LED light source
- SDCM ≤ 3 (3-step Mac Adam)
- Electronic control gear
- Catenary fitting excluding cable and wire
- Input Voltage: 220-240V AC
- Ambient temperature: -20˚C ... +45˚C
- 100.000 hours product life span (LM80 and TM21)
- 5-year warranty
- DOWNLOADS
-
CONIC - Datasheet
TECHNICAL PARAMETERS
| Code | W | Luminous Flux (lm) |
Efficacy (lm/W) |
CRI | Color Temperature (K) |
Dimensions (mm) |
|---|---|---|---|---|---|---|
| 550CON.32.03 | 32 | 2150 | >67 | >80 | 3000K - 6500K | Ø550x H:510mm |

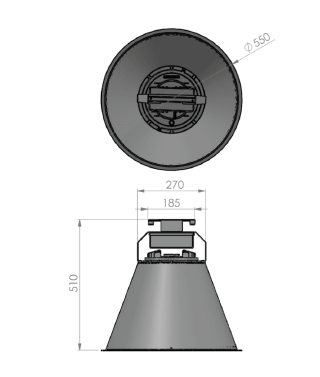

DIMENSIONS

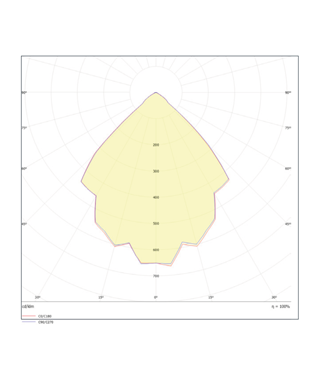

LIGHT BEAM
